Linux Net Tools
Network Tools¶
In this lab we will start a basic webserver using python's SimpleHTTPServer and analyze web requests using tcpdump
Task 1 - Setup¶
Step 1 - Webserver¶
Let's create a directory & script for our webserver
Let's create a file in the ~/web directory - index.html
index.html
Step 2 - Tools¶
Before we start our web server, let's install the tools we need to analyze the web traffic
Details on the tools we installed:
- tcpdump dumps traffic on a network
- netcat reads & writes data across network connections
- nmap is a utility for network discovery & security auditing
Step 3 - Start Server¶
Start the webserver
Step 4 - Verify Server¶

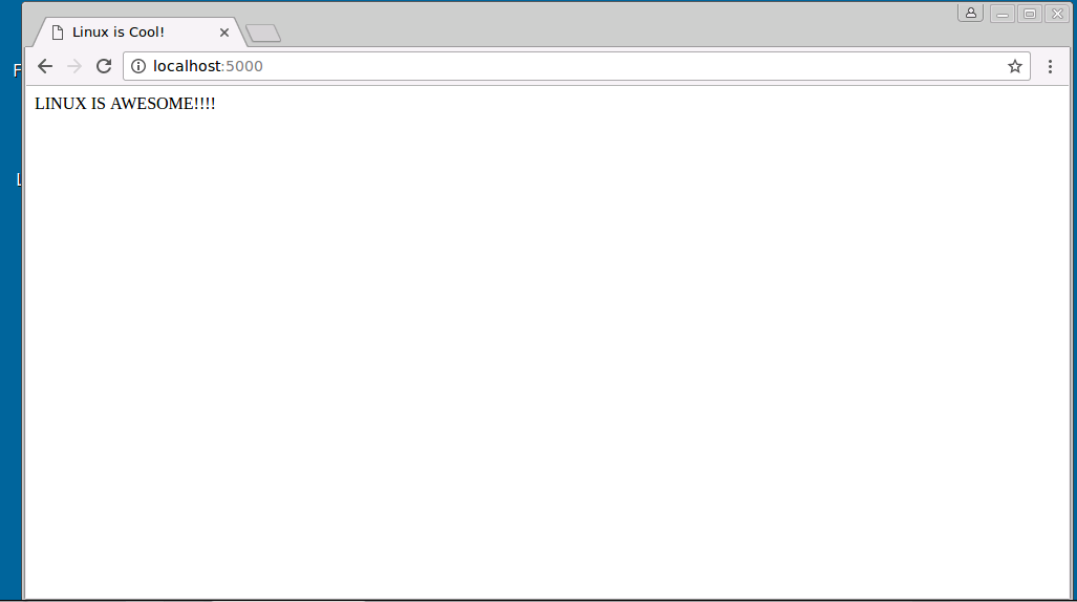

Open a browser and go to localhost:5000
Now that our server is running, lets examine the traffic
Task 2 - Network Traffic¶
Step 1 - tcpdump¶
To use tcpdump open a new terminal window & enter the following command:
[ntc@ntc web]$ sudo tcpdump -i any port 5000
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes
Flags:
* -i any - listen on any interface
* port 5000 - listen on port 5000
Refresh your browser to re-load the web page. Once complete, you should see the a similar output in your tcpdump terminal:
04:07:09.472875 IP gateway.49926 > ntc.webcache: Flags [S], seq 1082504705, win 65535, options [mss 1460], length 0
04:07:09.472922 IP ntc.webcache > gateway.49926: Flags [S.], seq 3544855645, ack 1082504706, win 29200, options [mss 1460], length 0
04:07:09.473021 IP gateway.49926 > ntc.webcache: Flags [.], ack 1, win 65535, length 0
04:07:09.473071 IP gateway.49926 > ntc.webcache: Flags [P.], seq 1:373, ack 1, win 65535, length 372: HTTP: GET / HTTP/1.1
04:07:09.473078 IP ntc.webcache > gateway.49926: Flags [.], ack 373, win 30016, length 0
04:07:09.474613 IP ntc.webcache > gateway.49926: Flags [P.], seq 1:18, ack 373, win 30016, length 17: HTTP: HTTP/1.0 200 OK
04:07:09.474790 IP gateway.49926 > ntc.webcache: Flags [.], ack 18, win 65535, length 0
04:07:09.474853 IP ntc.webcache > gateway.49926: Flags [P.], seq 18:55, ack 373, win 30016, length 37: HTTP
04:07:09.474936 IP gateway.49926 > ntc.webcache: Flags [.], ack 55, win 65535, length 0
04:07:09.475003 IP ntc.webcache > gateway.49926: Flags [P.], seq 55:92, ack 373, win 30016, length 37: HTTP
04:07:09.475087 IP gateway.49926 > ntc.webcache: Flags [.], ack 92, win 65535, length 0
04:07:09.475157 IP ntc.webcache > gateway.49926: Flags [P.], seq 92:117, ack 373, win 30016, length 25: HTTP
04:07:09.475241 IP gateway.49926 > ntc.webcache: Flags [.], ack 117, win 65535, length 0
04:07:09.475299 IP ntc.webcache > gateway.49926: Flags [P.], seq 117:137, ack 373, win 30016, length 20: HTTP
04:07:09.475378 IP gateway.49926 > ntc.webcache: Flags [.], ack 137, win 65535, length 0
You can stop
tcpdumpby pressing<CTRL>+c
The output may differ, but this confirms that tcpdump is capturing on port 5000
We can use this output to view the HTTP sequence. We could use this to diagnose any problems with our server
Step 2 - tcpdump options¶
Let's add some options to tcpdump
In the output above, we saw both sides of the HTTP conversation. We can adjust the tcpdump output to show only inbound traffic:
[ntc@ntc web]$ sudo tcpdump -i any src port 5000
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes
Refreshing our browser page should show this output:
04:16:01.352737 IP ntc.webcache > gateway.50326: Flags [S.], seq 440526229, ack 1145032706, win 29200, options [mss 1460], length 0
04:16:01.352830 IP ntc.webcache > gateway.50326: Flags [.], ack 399, win 30016, length 0
04:16:01.353818 IP ntc.webcache > gateway.50326: Flags [P.], seq 1:18, ack 399, win 30016, length 17: HTTP: HTTP/1.0 200 OK
04:16:01.354021 IP ntc.webcache > gateway.50326: Flags [P.], seq 18:117, ack 399, win 30016, length 99: HTTP
04:16:01.354131 IP ntc.webcache > gateway.50326: Flags [P.], seq 117:137, ack 399, win 30016, length 20: HTTP
04:16:01.354252 IP ntc.webcache > gateway.50326: Flags [P.], seq 137:183, ack 399, win 30016, length 46: HTTP
04:16:01.354353 IP ntc.webcache > gateway.50326: Flags [P.], seq 183:185, ack 399, win 30016, length 2: HTTP
04:16:01.354475 IP ntc.webcache > gateway.50326: Flags [P.], seq 185:282, ack 399, win 30016, length 97: HTTP
04:16:01.354621 IP ntc.webcache > gateway.50326: Flags [F.], seq 282, ack 399, win 30016, length 0
04:16:01.354682 IP ntc.webcache > gateway.50326: Flags [.], ack 400, win 30016, length 0
Notice that we are only seeing the incoming information to the webserver.
Let's change the src to dst & refresh browser:
sudo tcpdump -i any dst port 8080
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes
04:26:58.708730 IP gateway.50680 > ntc.webcache: Flags [S], seq 1221896705, win 65535, options [mss 1460], length 0
04:26:58.708858 IP gateway.50680 > ntc.webcache: Flags [.], ack 724467781, win 65535, length 0
04:26:58.708870 IP gateway.50680 > ntc.webcache: Flags [P.], seq 0:398, ack 1, win 65535, length 398: HTTP: GET / HTTP/1.1
04:26:58.710819 IP gateway.50680 > ntc.webcache: Flags [.], ack 18, win 65535, length 0
04:26:58.710925 IP gateway.50680 > ntc.webcache: Flags [.], ack 137, win 65535, length 0
04:26:58.711145 IP gateway.50680 > ntc.webcache: Flags [.], ack 185, win 65535, length 0
04:26:58.711280 IP gateway.50680 > ntc.webcache: Flags [.], ack 282, win 65535, length 0
04:26:58.711414 IP gateway.50680 > ntc.webcache: Flags [F.], seq 398, ack 282, win 65535, length 0
04:26:58.711438 IP gateway.50680 > ntc.webcache: Flags [F.], seq 398, ack 283, win 65535, length 0
tcpdump has MANY filtering options. They can also be combined by appending &&. tcpdump really shines when combined with a packet analyzer like tshark or the GUI version - Wireshark
In order to use a packet analyzer, we must write the packets to a file.
CHALLENGE 1: Using the filter(s) above, create a
tcpdumpcommand to write web traffic to two files:inbound.pcapandoutbound.pcapCHALLENGE 2: Using
tcpdumpfilters, create commands to capture on the host's IP AND destination port 5000
Net Tools Lab (Continued)¶
In this lab we will build upon our earlier Net Tools lab. We will need to ensure that our web server is still running & we have netcat and nmap installed
Task 1 - Netcat¶
Step 1 - Netcat Basic¶
Netcat can be used to read network data on a local server. It can also be used to verify/validate connectivity to local & exernal network resources.
Like tcpdump netcat has MANY options:
[ntc@ntc web]$ nc -h
Ncat 6.40 ( http://nmap.org/ncat )
Usage: ncat [options] [hostname] [port]
Options taking a time assume seconds. Append 'ms' for milliseconds,
's' for seconds, 'm' for minutes, or 'h' for hours (e.g. 500ms).
-4 Use IPv4 only
-6 Use IPv6 only
-U, --unixsock Use Unix domain sockets only
-C, --crlf Use CRLF for EOL sequence
-c, --sh-exec <command> Executes the given command via /bin/sh
-e, --exec <command> Executes the given command
--lua-exec <filename> Executes the given Lua script
-g hop1[,hop2,...] Loose source routing hop points (8 max)
-G <n> Loose source routing hop pointer (4, 8, 12, ...)
-m, --max-conns <n> Maximum <n> simultaneous connections
-h, --help Display this help screen
-d, --delay <time> Wait between read/writes
-o, --output <filename> Dump session data to a file
-x, --hex-dump <filename> Dump session data as hex to a file
-i, --idle-timeout <time> Idle read/write timeout
-p, --source-port port Specify source port to use
-s, --source addr Specify source address to use (doesn't affect -l)
-l, --listen Bind and listen for incoming connections
-k, --keep-open Accept multiple connections in listen mode
-n, --nodns Do not resolve hostnames via DNS
-t, --telnet Answer Telnet negotiations
-u, --udp Use UDP instead of default TCP
--sctp Use SCTP instead of default TCP
-v, --verbose Set verbosity level (can be used several times)
-w, --wait <time> Connect timeout
--append-output Append rather than clobber specified output files
--send-only Only send data, ignoring received; quit on EOF
--recv-only Only receive data, never send anything
--allow Allow only given hosts to connect to Ncat
--allowfile A file of hosts allowed to connect to Ncat
--deny Deny given hosts from connecting to Ncat
--denyfile A file of hosts denied from connecting to Ncat
--broker Enable Ncat's connection brokering mode
--chat Start a simple Ncat chat server
--proxy <addr[:port]> Specify address of host to proxy through
--proxy-type <type> Specify proxy type ("http" or "socks4")
--proxy-auth <auth> Authenticate with HTTP or SOCKS proxy server
--ssl Connect or listen with SSL
--ssl-cert Specify SSL certificate file (PEM) for listening
--ssl-key Specify SSL private key (PEM) for listening
--ssl-verify Verify trust and domain name of certificates
--ssl-trustfile PEM file containing trusted SSL certificates
--version Display Ncat's version information and exit
For basic listening, we can use the -l flag. However, if we try to listen on our server's port, we will throw an error:
This is because netcat works a bit differently than tcpdump. It does not listen passively. The details are beyond the scope of this lab, but netcat is normally used to test connectivity. It can also act as a server, listening on a certain port.
Step 2 - Netcat connection¶
Let's imagine that we want to test that port 5000 is open on our host. From our host we could run the following netcat command:
[ntc@ntc ~]$ nc -v 127.0.0.1 5000
Ncat: Version 7.60 ( https://nmap.org/ncat )
Ncat: Connected to 127.0.0.1:5000.
You can stop netcat with
+c
The -v flag is for verbose output. The Netcat syntax is: nc [options] host port
We could also run the above command from a remote host to ensure connectivity
Netcat can also be used to scan ports, looking for an open port. Let's assume we don't know what port our web server is configured to use. We can check by adding a -z flag:
We can also use netcat to check external connectivity:
nc -v google.com 80
Ncat: Version 7.60 ( https://nmap.org/ncat )
Ncat: Connected to 172.217.1.46:80.
Step 3 - Netcat Listener¶
Let's revisit the netcat listener option. It can be very useful in troubleshooting.
Let's assume we are having a problem with our webserver, and we want to ensure that it's not a network issue. All signs indicate that ports 5000-6000 should be open & available. We can use netcat to serve our index.html file on a different port. Let's use port 5001.
Ensure we are in the ~/web directory we created earlier, and the index.html file is available. Then enter the following command:

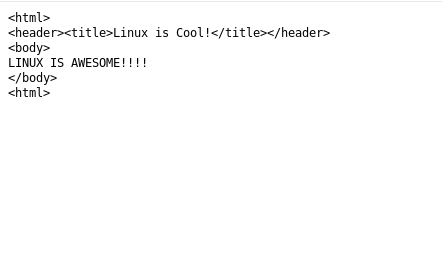

Opening a browser and navigating to: host:5001, we should be greeted with the following:
We suggest using Firefox, as Chrome may have problems with this test
You'll also notice the following in your terminal:
[ntc@ntc web]$ nc -l 5000 < index.html
GET / HTTP/1.1
Host: localhost:5000
User-Agent: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:58.0) Gecko/20100101 Firefox/58.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Connection: keep-alive
Upgrade-Insecure-Requests: 1
Unlike a true web server, netcat serves the file only once. If you refresh the browser, you'll notice that the web page is unavailable.
CHALLENGE: Configure a
netcatlistener on your jumphost, to use port 9125, and transfer theindex.htmlfile vianetcaton a different hostCHALLENGE 2: Use
netcatto query thentpservers configured on your host
Task 2 - NMAP¶
Nmap is a utility for network discovery & security auditing. It can be used to disover open ports, host & OS information, vulnerability detection, and much more.
In this lab we will use Nmap to discover ports, hosts, and details about our network
Step 1 - Nmap Options¶
Take a moment to get familiar with the options for nmap:
[ntc@ntc ~]$ nmap -h
Nmap 6.40 ( http://nmap.org )
Usage: nmap [Scan Type(s)] [Options] {target specification}
TARGET SPECIFICATION:
Can pass hostnames, IP addresses, networks, etc.
Ex: scanme.nmap.org, microsoft.com/24, 172.18.0.1; 10.0.0-255.1-254
-iL <inputfilename>: Input from list of hosts/networks
-iR <num hosts>: Choose random targets
--exclude <host1[,host2][,host3],...>: Exclude hosts/networks
--excludefile <exclude_file>: Exclude list from file
HOST DISCOVERY:
-sL: List Scan - simply list targets to scan
-sn: Ping Scan - disable port scan
-Pn: Treat all hosts as online -- skip host discovery
-PS/PA/PU/PY[portlist]: TCP SYN/ACK, UDP or SCTP discovery to given ports
-PE/PP/PM: ICMP echo, timestamp, and netmask request discovery probes
-PO[protocol list]: IP Protocol Ping
-n/-R: Never do DNS resolution/Always resolve [default: sometimes]
--dns-servers <serv1[,serv2],...>: Specify custom DNS servers
--system-dns: Use OS's DNS resolver
--traceroute: Trace hop path to each host
SCAN TECHNIQUES:
-sS/sT/sA/sW/sM: TCP SYN/Connect()/ACK/Window/Maimon scans
-sU: UDP Scan
-sN/sF/sX: TCP Null, FIN, and Xmas scans
--scanflags <flags>: Customize TCP scan flags
-sI <zombie host[:probeport]>: Idle scan
-sY/sZ: SCTP INIT/COOKIE-ECHO scans
-sO: IP protocol scan
-b <FTP relay host>: FTP bounce scan
PORT SPECIFICATION AND SCAN ORDER:
-p <port ranges>: Only scan specified ports
Ex: -p22; -p1-65535; -p U:53,111,137,T:21-25,80,139,8080,S:9
-F: Fast mode - Scan fewer ports than the default scan
-r: Scan ports consecutively - don't randomize
--top-ports <number>: Scan <number> most common ports
--port-ratio <ratio>: Scan ports more common than <ratio>
SERVICE/VERSION DETECTION:
-sV: Probe open ports to determine service/version info
--version-intensity <level>: Set from 0 (light) to 9 (try all probes)
--version-light: Limit to most likely probes (intensity 2)
--version-all: Try every single probe (intensity 9)
--version-trace: Show detailed version scan activity (for debugging)
SCRIPT SCAN:
-sC: equivalent to --script=default
--script=<Lua scripts>: <Lua scripts> is a comma separated list of
directories, script-files or script-categories
--script-args=<n1=v1,[n2=v2,...]>: provide arguments to scripts
--script-args-file=filename: provide NSE script args in a file
--script-trace: Show all data sent and received
--script-updatedb: Update the script database.
--script-help=<Lua scripts>: Show help about scripts.
<Lua scripts> is a comma separted list of script-files or
script-categories.
OS DETECTION:
-O: Enable OS detection
--osscan-limit: Limit OS detection to promising targets
--osscan-guess: Guess OS more aggressively
TIMING AND PERFORMANCE:
Options which take <time> are in seconds, or append 'ms' (milliseconds),
's' (seconds), 'm' (minutes), or 'h' (hours) to the value (e.g. 30m).
-T<0-5>: Set timing template (higher is faster)
--min-hostgroup/max-hostgroup <size>: Parallel host scan group sizes
--min-parallelism/max-parallelism <numprobes>: Probe parallelization
--min-rtt-timeout/max-rtt-timeout/initial-rtt-timeout <time>: Specifies
probe round trip time.
--max-retries <tries>: Caps number of port scan probe retransmissions.
--host-timeout <time>: Give up on target after this long
--scan-delay/--max-scan-delay <time>: Adjust delay between probes
--min-rate <number>: Send packets no slower than <number> per second
--max-rate <number>: Send packets no faster than <number> per second
FIREWALL/IDS EVASION AND SPOOFING:
-f; --mtu <val>: fragment packets (optionally w/given MTU)
-D <decoy1,decoy2[,ME],...>: Cloak a scan with decoys
-S <IP_Address>: Spoof source address
-e <iface>: Use specified interface
-g/--source-port <portnum>: Use given port number
--data-length <num>: Append random data to sent packets
--ip-options <options>: Send packets with specified ip options
--ttl <val>: Set IP time-to-live field
--spoof-mac <mac address/prefix/vendor name>: Spoof your MAC address
--badsum: Send packets with a bogus TCP/UDP/SCTP checksum
OUTPUT:
-oN/-oX/-oS/-oG <file>: Output scan in normal, XML, s|<rIpt kIddi3,
and Grepable format, respectively, to the given filename.
-oA <basename>: Output in the three major formats at once
-v: Increase verbosity level (use -vv or more for greater effect)
-d: Increase debugging level (use -dd or more for greater effect)
--reason: Display the reason a port is in a particular state
--open: Only show open (or possibly open) ports
--packet-trace: Show all packets sent and received
--iflist: Print host interfaces and routes (for debugging)
--log-errors: Log errors/warnings to the normal-format output file
--append-output: Append to rather than clobber specified output files
--resume <filename>: Resume an aborted scan
--stylesheet <path/URL>: XSL stylesheet to transform XML output to HTML
--webxml: Reference stylesheet from Nmap.Org for more portable XML
--no-stylesheet: Prevent associating of XSL stylesheet w/XML output
MISC:
-6: Enable IPv6 scanning
-A: Enable OS detection, version detection, script scanning, and traceroute
--datadir <dirname>: Specify custom Nmap data file location
--send-eth/--send-ip: Send using raw ethernet frames or IP packets
--privileged: Assume that the user is fully privileged
--unprivileged: Assume the user lacks raw socket privileges
-V: Print version number
-h: Print this help summary page.
EXAMPLES:
nmap -v -A scanme.nmap.org
nmap -v -sn 172.18.0.0/16 10.0.0.0/8
nmap -v -iR 10000 -Pn -p 80
SEE THE MAN PAGE (http://nmap.org/book/man.html) FOR MORE OPTIONS AND EXAMPLES
With so many options, lets identify some of the most used command line flags:
-v: Increase verbosity level (use -vv or more for greater effect)-p <port ranges>: Only scan specified ports (Example:-p1-1024)-sn: Ping Scan - disable port scan-Pn: Treat all hosts as online -- skip host discovery-n/-R: Never do DNS resolution/Always resolve [default: sometimes]-O: Enable OS detection
These flags can be combined
Step 2 - Ping Sweep¶
We can use nmap to issue a ping to all hosts in a given subnet, and return information about those that respond:
[ntc@ntc ~]$ nmap -sn 172.18.0.0/24
Starting Nmap 6.40 ( http://nmap.org ) at 2018-01-11 11:20 EST
mass_dns: warning: Unable to determine any DNS servers. Reverse DNS is disabled. Try using --system-dns or specify valid servers with --dns-servers
Nmap scan report for proxy.ntc.com (172.18.0.51)
Host is up (0.0039s latency).
Nmap scan report for 172.18.0.52
Host is up (0.0035s latency).
Nmap done: 256 IP addresses (2 hosts up) scanned in 21.92 seconds
As indicated by the last line, nmap scanned 256 IP addresses, and found one host that responded.
To increase the verbosity, add a -v option:
[ntc@ntc ~]$ nmap -v -sn 172.18.0.0/24
Starting Nmap 6.40 ( http://nmap.org ) at 2018-01-11 11:23 EST
Initiating Ping Scan at 11:23
Scanning 256 hosts [2 ports/host]
Ping Scan Timing: About 21.29% done; ETC: 11:26 (0:01:55 remaining)
Completed Ping Scan at 11:24, 57.43s elapsed (256 total hosts)
mass_dns: warning: Unable to determine any DNS servers. Reverse DNS is disabled. Try using --system-dns or specify valid servers with --dns-servers
Nmap scan report for 172.18.0.0 [host down]
Nmap scan report for 172.18.0.1 [host down]
Nmap scan report for 172.18.0.2 [host down]
Nmap scan report for 172.18.0.3 [host down]
[...snipped for brevity...]
Nmap scan report for 172.18.0.44 [host down]
Nmap scan report for 172.18.0.45 [host down]
Nmap scan report for 172.18.0.46 [host down]
Nmap scan report for 172.18.0.47 [host down]
Nmap scan report for 172.18.0.48 [host down]
Nmap scan report for 172.18.0.49 [host down]
Nmap scan report for 172.18.0.50 [host down]
Nmap scan report for proxy.ntc.com (172.18.0.51)
Host is up (0.0061s latency).
Nmap scan report for 172.18.0.52
Host is up (0.0051s latency).
Nmap scan report for 172.18.0.53 [host down]
Nmap scan report for 172.18.0.54 [host down]
Nmap scan report for 172.18.0.55 [host down]
[...snipped for brevity...]
Read data files from: /usr/bin/../share/nmap
Nmap done: 256 IP addresses (2 hosts up) scanned in 57.46 seconds
With verbosity increased, we can see all of the hosts that were attempted, and their status. We will use this information to look into
CHALLENGE: Use the command line flags to remove the
DNS Resolutionerror above
Step 3 - Port Scanning¶
Ping sweeping is a good way to determine which hosts are responding on the network, but this has several limitations:
- Limited to hosts that respond to ping
- Does not provide information about open ports
Let's add port scanning to our nmap commands. We will use the proxy we configured in previous labs:
[ntc@ntc ~]$ sudo nmap -n -p 1-65535 -sV -sS -T4 172.18.0.51
Starting Nmap 6.40 ( http://nmap.org ) at 2018-01-11 11:45 EST
Nmap scan report for 172.18.0.51
Host is up (0.00065s latency).
Not shown: 65532 closed ports
PORT STATE SERVICE VERSION
22/tcp open ssh (protocol 2.0)
3389/tcp open ms-wbt-server xrdp
8080/tcp open http-proxy Tinyproxy 1.8.3
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at http://www.insecure.org/cgi-bin/servicefp-submit.cgi :
SF-Port22-TCP:V=6.40%I=7%D=2/14%Time=5A8467E4%P=x86_64-redhat-linux-gnu%r(
SF:NULL,29,"SSH-2\.0-OpenSSH_7\.2p2\x20Ubuntu-4ubuntu2\.1\r\n");
MAC Address: 2C:C2:60:44:9C:30 (Ravello Systems)
Service detection performed. Please report any incorrect results at http://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 28.64 seconds
Let's examine the flags we added to that command:
* -n: Disable DNS Resolution
* -p 1-65535: Ports to scan - all ports
* -sV: Service & Version Detection (returns SERVICE & VERSION )
* -sS: Scan Technique (returns MAC Address)
* -T4: Timing type 4 (safe balance of timing and accuracy)
In plain-human:
* Check host 172.18.0.51 to determine which ports are open and listening for a TCP connection.
* Try to determine which service (application) is listening on these open ports, and which version of that service.
Step 4 - Service Scanning¶
The example above was more useful in identifying services available on a certain host. At times, we may need to identify a service on a network, or among a list of hosts. As such our approach would be more targeted, but against a wider subset of hosts.
Let's say we wanted to search for available webservers on our network. Nmap has a handy way of doing this:
[ntc@ntc ~]$ nmap -n -p80,443 172.18.0.0/24
Starting Nmap 6.40 ( http://nmap.org ) at 2018-01-12 12:05 EST
RTTVAR has grown to over 2.3 seconds, decreasing to 2.0
Nmap scan report for 172.18.0.51
Host is up (0.0049s latency).
PORT STATE SERVICE
80/tcp closed http
443/tcp closed https
Nmap scan report for 172.18.0.52
Host is up (0.0032s latency).
PORT STATE SERVICE
80/tcp closed http
443/tcp closed https
Nmap done: 256 IP addresses (2 hosts up) scanned in 21.75 seconds
In the previous request, we are searching our network for open known http/s ports.
Let's target our proxy configuration from an earlier lab:
[ntc@ntc ~]$ nmap -n -p8080 172.18.0.0/24
Starting Nmap 6.40 ( http://nmap.org ) at 2018-01-12 12:09 EST
Nmap scan report for 172.18.0.51
Host is up (0.0030s latency).
PORT STATE SERVICE
8080/tcp open http-proxy
Nmap scan report for 172.18.0.52
Host is up (0.0024s latency).
PORT STATE SERVICE
8080/tcp closed http-proxy
Nmap done: 256 IP addresses (2 hosts up) scanned in 28.16 seconds
Finally, let's add service discovery with -sV:
[ntc@ntc ~]$ sudo nmap -n -sV -p8080 172.18.0.0/24
Starting Nmap 6.40 ( http://nmap.org ) at 2018-01-12 12:16 EST
Nmap scan report for 172.18.0.1
Host is up (0.0011s latency).
PORT STATE SERVICE VERSION
8080/tcp filtered http-proxy
MAC Address: 2C:C2:60:FF:00:2A (Ravello Systems)
Nmap scan report for 172.18.0.2
Host is up (0.00067s latency).
PORT STATE SERVICE VERSION
8080/tcp filtered http-proxy
MAC Address: 2C:C2:60:FF:00:2F (Ravello Systems)
Nmap scan report for 172.18.0.51
Host is up (0.00089s latency).
PORT STATE SERVICE VERSION
8080/tcp open http-proxy Tinyproxy 1.8.3
MAC Address: 2C:C2:60:44:9C:30 (Ravello Systems)
Nmap scan report for 172.18.0.52
Host is up (0.00038s latency).
PORT STATE SERVICE VERSION
8080/tcp closed http-proxy
Service detection performed. Please report any incorrect results at http://nmap.org/submit/ .
Nmap done: 256 IP addresses (4 hosts up) scanned in 8.77 seconds
Step 5 - CHALLENGE!¶
Scenario: The application team is contending that the webserver (built in our previous lab) is down
CHALLENGE: Use the flags & information above to scan the network & determine if the webserver is up on the network
Scenario 2: We are handed a set of hosts to scan - 172.18.0.51 & 172.18.0.52
CHALLENGE: Use the flags and information above to scan for open ports on JUST these two hosts
BONUS: Create a file called hosts.txt and use this to determine which hosts are to be used in the scan above
Scenario 3: We need to output our results to a report
CHALLENGE: Create a report called
scan.txtfrom the results of a verbose scan of all hosts/ports on the network.
