Linux Admin

User Administration¶

Adding a user¶

[ntc@ntc ~]$ sudo useradd -m ntc-netops-user1
[ntc@ntc ~]$

The -m flag will ensure that the home directory is created for the user under /home, using the user name as the directory name

[ntc@ntc ~]$ sudo passwd ntc-netops-user1
Changing password for user ntc-netops-user1.
New password:
BAD PASSWORD: The password fails the dictionary check - it is too simplistic/systematic
Retype new password:
passwd: all authentication tokens updated successfully.
[ntc@ntc ~]$

The `sudo` command¶

Elevates privileges of a normal user to allow her to "do" "superuser" operations
Use wisely!!

The `/etc/passwd` file¶

[ntc@ntc ~]$ cat /etc/passwd
root:x:0:0:root:/root:/bin/bash
bin:x:1:1:bin:/bin:/sbin/nologin
daemon:x:2:2:daemon:/sbin:/sbin/nologin
adm:x:3:4:adm:/var/adm:/sbin/nologin
lp:x:4:7:lp:/var/spool/lpd:/sbin/nologin
sync:x:5:0:sync:/sbin:/bin/sync
.
.
.
.

<output truncated for readability>
.
.
.
.
colord:x:995:990:User for colord:/var/lib/colord:/sbin/nologin
gdm:x:42:42::/var/lib/gdm:/sbin/nologin
testuser:x:1002:1002::/home/testuser:/bin/bash
ntc-netops-user1:x:1003:1003::/home/ntc-netops-user1:/bin/bash
[ntc@ntc ~]$

Lab 9 - User Administration¶

In this lab you will understand how to add and remove users, create groups, control permissions and elevate user permissions in Linux

Task 1 - Adding a user¶

Step 1¶

The ntc user has superuser or root privileges. This means, commands that are normally not allowed to be executed by a regular user can be invoked by a privileged user by invoking it using a sudo command.

Test it out by first issuing the following command:

[ntc@ntc ~]$ ls /root
ls: cannot open directory /root: Permission denied
[ntc@ntc ~]$

Step 2¶

Retry this command by prefixing it with a sudo command:

[ntc@ntc ~]$ sudo ls /root/
[sudo] password for ntc:
anaconda-ks.cfg  original-ks.cfg
[ntc@ntc ~]$

Enter your ntc user account's password when prompted. For our labs this should be ntc123

Step 3¶

Now add a user called ntc-netops-user1 using the useradd command. Be sure to look up the man pages of the command to understand the different options.

[ntc@ntc ~]$ sudo useradd -m ntc-netops-user1
[ntc@ntc ~]$

The -m flag will ensure that the home directory is created for the user under /home, using the user name as the directory name.

Step 4¶

Next create a password for this user using the passwd command. Remember that you can only invoke this command with the sudo command.

Since this is a non-production environment, use test123 as the password.

[ntc@ntc ~]$ sudo passwd ntc-netops-user1
Changing password for user ntc-netops-user1.
New password:
BAD PASSWORD: The password fails the dictionary check - it is too simplistic/systematic
Retype new password:
passwd: all authentication tokens updated successfully.
[ntc@ntc ~]$

Step 5¶

To validate that the user has been created, try logging in as this user. You can do this from within your current login (as user ntc) using the su or "switch user" command.

You do not need to escalate privileges using sudo in this case because you are simply logging in as another user and will be challenged to log in.

[ntc@ntc ~]$ su - ntc-netops-user1
Password:
Last login: Tue Feb  6 03:06:34 UTC 2018 on pts/2
[ntc-netops-user1@ntc ~]$
[ntc-netops-user1@ntc ~]$
[ntc-netops-user1@ntc ~]$

When prompted, enter the password created in the previous step.

Step 6¶

Exit this shell by typing the exit command or using the key-combination CTRL-d.

[ntc-netops-user1@ntc ~]$
[ntc-netops-user1@ntc ~]$ exit
[ntc@ntc ~]$

Step 7¶

When you created a new user along with a password, this is recorded in the /etc/passwd file. Use the cat command to view this file and look for the entry associated with the new user:

[ntc@ntc ~]$ cat /etc/passwd
root:x:0:0:root:/root:/bin/bash
bin:x:1:1:bin:/bin:/sbin/nologin
daemon:x:2:2:daemon:/sbin:/sbin/nologin
adm:x:3:4:adm:/var/adm:/sbin/nologin
lp:x:4:7:lp:/var/spool/lpd:/sbin/nologin
sync:x:5:0:sync:/sbin:/bin/sync
.
.
.
.

<output truncated for readability>
.
.
.
.
colord:x:995:990:User for colord:/var/lib/colord:/sbin/nologin
gdm:x:42:42::/var/lib/gdm:/sbin/nologin
testuser:x:1002:1002::/home/testuser:/bin/bash
ntc-netops-user1:x:1003:1003::/home/ntc-netops-user1:/bin/bash
[ntc@ntc ~]$

Step 8¶

Use the man 5 passwd command to read about the /etc/passwd file. This file is field separated using the : characters into the following fields:

username	password	uid	gid	description	home dir	shell

Task 2 - Groups¶

By default when a new user is added, a group by the same name is created and the user is added to that group. In this task we will create a new group called netops and add multiple users to this group. Additionally you will learn about file and directory permissions.

Step 1¶

The groups command is used to check what groups a user is currently a member off. Use this command to see the group memberships of ntc and ntc-netops-user1:

[ntc@ntc ~]$ groups ntc
ntc : ntc
[ntc@ntc ~]$ groups ntc-netops-user1
ntc-netops-user1 : ntc-netops-user1
[ntc@ntc ~]$

Step 2¶

Create a new group called ntc-netops using the groupadd command. Use the man pages to understand the options available.

[ntc@ntc ~]$ sudo groupadd ntc-netops
[sudo] password for ntc:
[ntc@ntc ~]$

Step 3¶

Add the ntc-netops-user1 to this newly created group. For this, use the usermod command:

[ntc@ntc ~]$ sudo usermod -a -G ntc-netops ntc-netops-user1
[ntc@ntc ~]$

The -a flag will append the user to the list of groups specified using -G in addition to the group already associated with the user.

Step 4¶

Confirm the group membership for ntc-netops-user1 using the groups command:

[ntc@ntc ~]$ groups ntc-netops-user1
ntc-netops-user1 : ntc-netops-user1 ntc-netops
[ntc@ntc ~]$

The user now belongs to both the ntc-netops and ntc-netops-user1 groups.

Task 3 - Add 2 new users to the group¶

Step 1¶

Add 2 new users: ntc-netops-user2 and ntc-netops-user3 to the group ntc-netops. Group associations can be made during the user creation phase itself.

[ntc@ntc ~]$ sudo useradd -m ntc-netops-user2 -G ntc-netops
[ntc@ntc ~]$ groups ntc-netops-user2
ntc-netops-user2 : ntc-netops-user2 ntc-netops
[ntc@ntc ~]$
[ntc@ntc ~]$ sudo useradd -m ntc-netops-user3 -G ntc-netops
[ntc@ntc ~]$ groups ntc-netops-user3
ntc-netops-user3 : ntc-netops-user3 ntc-netops
[ntc@ntc ~]$

Step 2¶

Assign passwords to both the newly created users: (Use test123)

[ntc@ntc ~]$ sudo passwd ntc-netops-user2
Changing password for user ntc-netops-user2.
New password:
BAD PASSWORD: The password fails the dictionary check - it is too simplistic/systematic
Retype new password:
passwd: all authentication tokens updated successfully.
[ntc@ntc ~]$ sudo passwd ntc-netops-user3
Changing password for user ntc-netops-user3.
New password:
BAD PASSWORD: The password fails the dictionary check - it is too simplistic/systematic
Retype new password:
passwd: all authentication tokens updated successfully.
[ntc@ntc ~]$

Login and verify the new user accounts.

Task 4 - Adding a privileged user¶

The sudo of "Superuser do" command allows an authorized account to perform actions reserved for the root or admin user. In this task, you will add ntc-netops-user1 as a sudo enabled privileged user.

Step 1¶

The sudoers policy is controlled by the configuration specified within /etc/sudoers file. Use the man command to review the help on sudoers

[ntc@ntc etc]$ man sudoers
[ntc@ntc etc]$

From the man pages: The policy is driven by the /etc/sudoers file

Step 2¶

The sudoers file is typically modified using the visudo command. Go ahead and type this command on the terminal.

[ntc@ntc etc]$ sudo visudo

The file contains :

## Sudoers allows particular users to run various commands as
## the root user, without needing the root password.
##
## Examples are provided at the bottom of the file for collections
## of related commands,
.
.
.
.
.
<output truncated for readability>
.
## Next comes the main part: which users can run what software on
## which machines (the sudoers file can be shared between multiple
## systems).
## Syntax:
##
##      user    MACHINE=COMMANDS
##
## The COMMANDS section may have other options added to it.
##
## Allow root to run any commands anywhere
root    ALL=(ALL)       ALL

## Allows members of the 'sys' group to run networking, software,
.
.
.
.
.
<output truncated for readability>
## Read drop-in files from /etc/sudoers.d (the # here does not mean a comment)
#includedir /etc/sudoers.d

Quit this file, as you would vim.

Step 3¶

The last couple of lines in the file point us to the directory /etc/sudoers.d where custom sudoer settings are managed. Go ahead and execute ls -l on this directory:

[ntc@ntc etc]$ sudo ls -l /etc/sudoers.d/
[sudo] password for ntc:
total 8
-r--r-----. 1 root root 20 Dec 21 16:42 ntc
[ntc@ntc etc]$

As you can see, the ntc user's sudo permissions themselves are governed within.

Step 4¶

Go ahead and use the cat command to view the contents of the ntc file.

[ntc@ntc etc]$ sudo cat /etc/sudoers.d/ntc
%ntc ALL=(ALL) ALL
[ntc@ntc etc]$

This is a simplistic configuration where the ntc user has been given all permissions to all available commands on the box.

Step 5¶

Using the above as template, use the visudo command to create a new file called ntc-netops-user1

[ntc@ntc etc]$ sudo visudo -f /etc/sudoers.d/ntc-netops-user1
[ntc@ntc etc]$

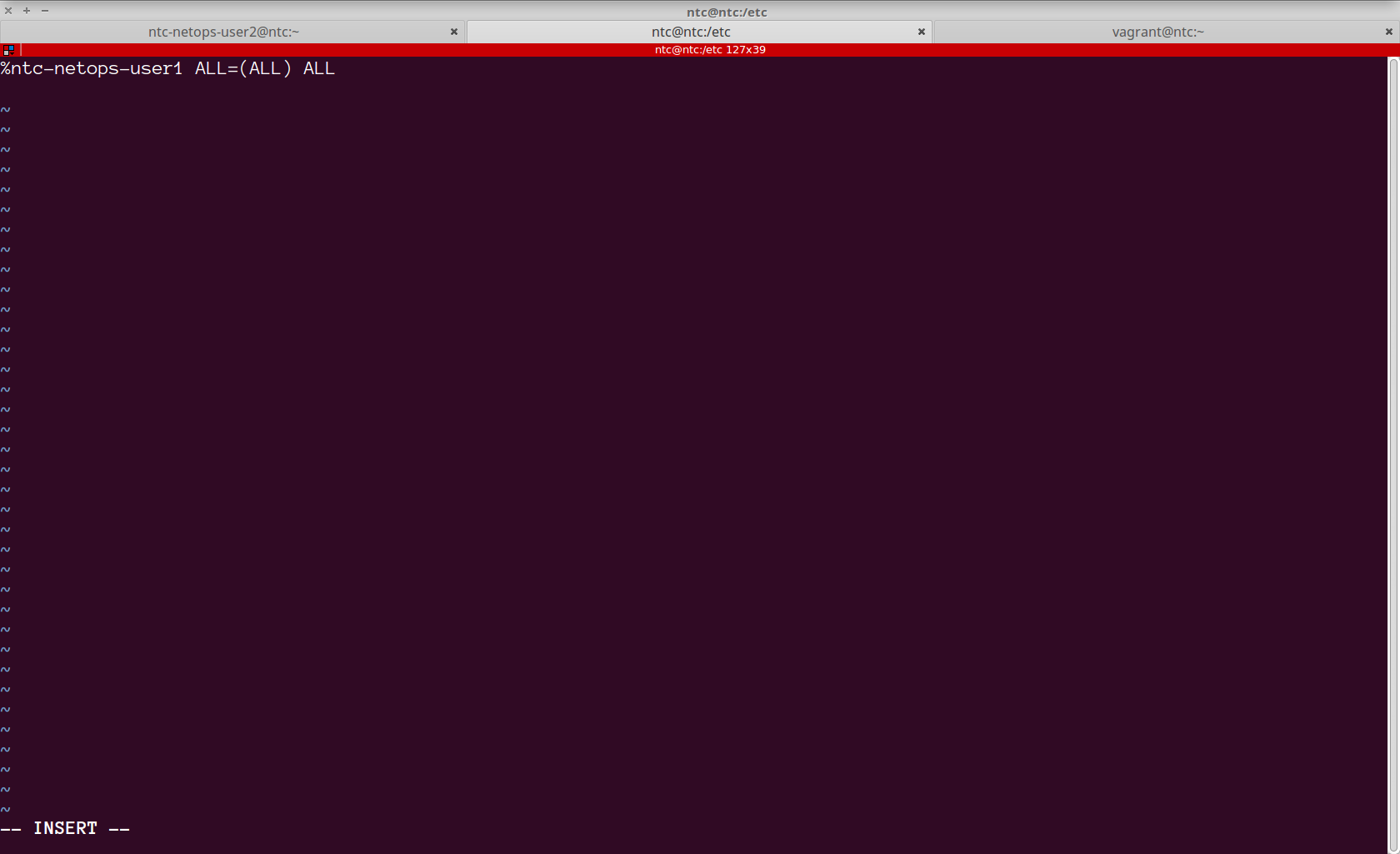

This command will open a vim window, within which you can add the configuration as follows:

Step 6¶

Save and quit this file as you would in vim.

Step 7¶

Now it's time to test out the changes. Using the su command, login as ntc-netops-user1.

[ntc@ntc etc]$ su - ntc-netops-user1
Password:
Last login: Tue Feb  6 05:13:40 UTC 2018 on pts/2
[ntc-netops-user1@ntc ~]$

Step 8¶

Using the sudo command, create a new directory /opt/ntc-netops/. This will be the shared directory for the netops users.

[ntc-netops-user1@ntc ~]$ sudo mkdir -p /opt/ntc-netops

We trust you have received the usual lecture from the local System
Administrator. It usually boils down to these three things:

    #1) Respect the privacy of others.
    #2) Think before you type.
    #3) With great power comes great responsibility.

[sudo] password for ntc-netops-user1:
[ntc-netops-user1@ntc ~]$

Note the warning as a sudoer.

Step 9¶

Confirm that the new directory has been created.

[ntc-netops-user1@ntc ~]$ ls -ltr /opt/
total 0
drwxr-xr-x. 2 root root  6 Feb  6 05:25 ntc-netops
[ntc-netops-user1@ntc ~]$

Task 5 - File Permissions¶

Every file in Unix has the following attributes:

Owner permissions − The owner's permissions determine what actions the owner of the file can perform on the file.
Group permissions − The group's permissions determine what actions a user, who is a member of the group that a file belongs to, can perform on the file.
Other (world) permissions − The permissions for others indicate what action all other users can perform on the file.

The actions typically are Read(r), Write(w) and eXecute(x).

Step 1¶

In the previous task you created a directory called /opt/ntc-netops. Review the output of the directory listing :

[ntc-netops-user1@ntc ~]$ ls -ltr /opt/
total 0
drwxr-xr-x. 2 root root  6 Feb  6 05:25 ntc-netops
[ntc-netops-user1@ntc ~]$

The output indicates that the owner and group of this directory (subdirectories and files within as well) are root.

Only the root user has permissions to write into this directory whereas members of the root group have permissions to read and traverse the directory.

Step 2¶

Let's go ahead and change the owner and group of this directory to be ntc-netops-user1 and ntc-netops. Use the chown command to do this. The -R flag can be used to ensure that owner and group for all recursive subdirectories and files are also updated:

[ntc-netops-user1@ntc ~]$ sudo chown -R  ntc-netops-user1:ntc-netops /opt/ntc-netops/
[sudo] password for ntc-netops-user1:
[ntc-netops-user1@ntc ~]$ ls -l /opt
total 0
drwxr-xr-x. 2 ntc-netops-user1 ntc-netops  6 Feb  6 05:25 ntc-netops

Step 3¶

Using the cat command create a file called /opt/ntc-netops/Ops_workflow.md that contains the following text:

1. Backup device configurations
2. Run standard tests
3. Capture ICMP and traceroute outputs
4. Implement the change
5. Re run tests
6. [OPTIONAL] Backout if needed
7. Save new configurations

[ntc-netops-user1@ntc ~]$ cat > /opt/ntc-netops/Ops_workflow.md
1. Backup device configurations
2. Run standard tests
3. Capture ICMP and traceroute outputs
4. Implement the change
5. Re run tests
6. [OPTIONAL] Backout if needed
7. Save new configurations
[ntc-netops-user1@ntc ~]$

Step 4¶

Check the file permissions of this file by using the ls -l command.

[ntc-netops-user1@ntc ~]$ ls -l /opt/ntc-netops
total 4
-rw-rw-r--. 1 ntc-netops-user1 ntc-netops-user1 193 Feb  6 05:17 Ops_workflow.md
[ntc-netops-user1@ntc ~]$

This file is world/Other readable but can be edited only by the ntc-netops-user1 user or group

Step 5¶

In another window log in as ntc-netops-user2 (login as ntc and then use the su command)

[ntc@ntc ~]$ su - ntc-netops-user2
Password:
Last login: Tue Feb  6 04:45:19 UTC 2018 on pts/2
[ntc-netops-user2@ntc ~]$

Step 5¶

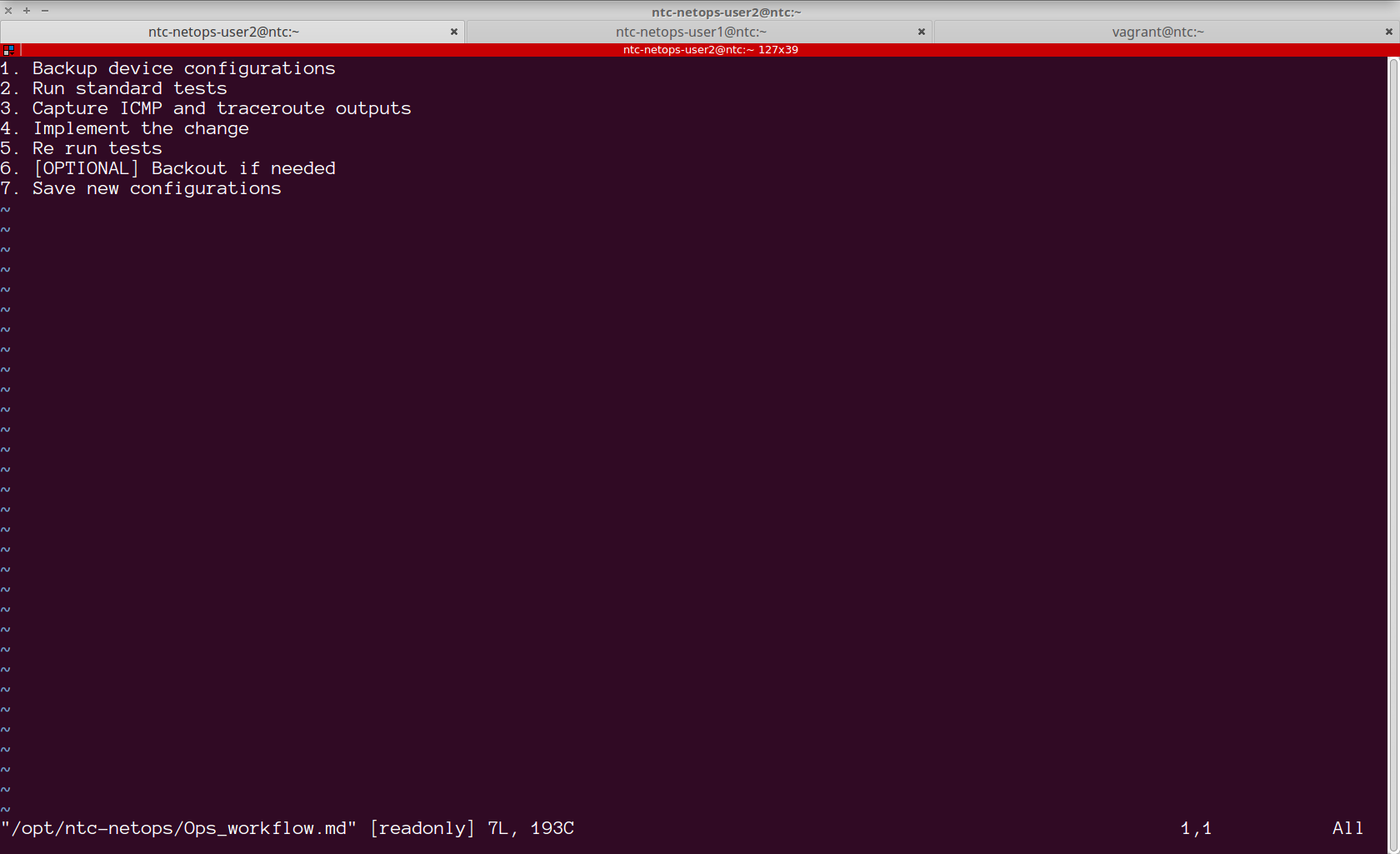

Using vim open the file created by ntc-netops-user1 in the preceding steps.

Note: This file is readonly!

Step 6¶

Since users that belong to ntc-netops should have permissions to edit this file, the file's group ownership should be modified. Switch back to the terminal where you are logged in as ntc-netops-user1 and execute the chgrp command:

[ntc-netops-user1@ntc ~]$ chgrp ntc-netops /opt/ntc-netops/Ops_workflow.md
[ntc-netops-user1@ntc ~]$

Note: No sudo is needed here since the file is owned by the ntc-netops-user1 user.

[ntc-netops-user1@ntc ~]$ ls -l /opt/ntc-netops/
total 4
-rw-rw-r--. 1 ntc-netops-user1 ntc-netops 193 Feb  6 07:35 Ops_workflow.md
[ntc-netops-user1@ntc ~]$

Step 7¶

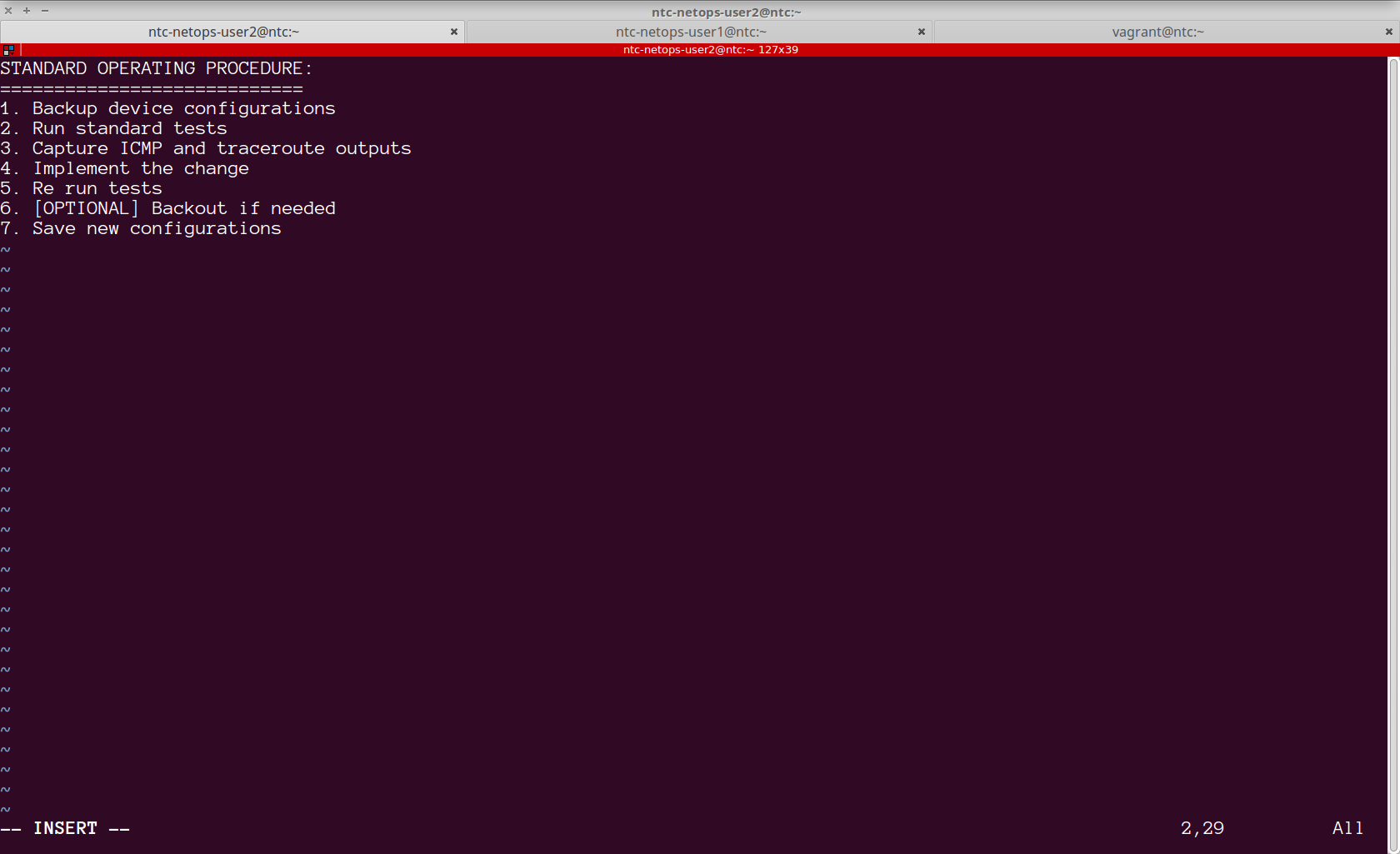

Once again, as ntc-netops-user2, try to edit the file using vim. Insert a title for the document and call it STANDARD OPERATING PROCEDURE:

Step 8¶

Save and quit the file

Step 9¶

Currently this file is world readable. To ensure that only members of the ntc-netops group can view and edit this file, remove the read permissions for o or "Others". File permissions are controlled using the chmod command:

[ntc-netops-user1@ntc ~]$ chmod o-r /opt/ntc-netops/Ops_workflow.md
[ntc-netops-user1@ntc ~]$
[ntc-netops-user1@ntc ~]$ ls -l /opt/ntc-netops/
total 4
-rw-rw----. 1 ntc-netops-user1 ntc-netops 252 Feb  6 07:44 Ops_workflow.md
[ntc-netops-user1@ntc ~]$

Step 10¶

Login as the ntc user and try to view the contents of /opt/ntc-netops/Ops_workflow.md . Use the more command for this step.

[ntc@ntc ~]$
[ntc@ntc ~]$ more /opt/ntc-netops/Ops_workflow.md
/opt/ntc-netops/Ops_workflow.md: Permission denied
[ntc@ntc ~]$
[ntc@ntc ~]$
[ntc@ntc ~]$

Linux Admin

User Administration¶

Adding a user¶

The sudo command¶

The /etc/passwd file¶

Lab 9 - User Administration¶

Task 1 - Adding a user¶

Step 1¶

Step 2¶

Step 3¶

Step 4¶

Step 5¶

Step 6¶

Step 7¶

Step 8¶

Task 2 - Groups¶

Step 1¶

Step 2¶

Step 3¶

Step 4¶

Task 3 - Add 2 new users to the group¶

Step 1¶

Step 2¶

Task 4 - Adding a privileged user¶

Step 1¶

Step 2¶

Step 3¶

Step 4¶

Step 5¶

Step 6¶

Step 7¶

Step 8¶

Step 9¶

Task 5 - File Permissions¶

Step 1¶

Step 2¶

Step 3¶

Step 4¶

Step 5¶

Step 5¶

Step 6¶

Step 7¶

Step 8¶

Step 9¶

Step 10¶

The `sudo` command¶

The `/etc/passwd` file¶
