Lab 02 - Collaborative Git and GitHub Workshop - Using GitHub For Remote Git Repository Hosting¶
In this lab exercise you are going to start using GitHub as a remote hosting solution for your repository and take the first steps towards performing collaborative workflows on GitHub.
You will need to use your own GitHub account so be sure to have your credentials handy!
- Lab 02 - Collaborative Git and GitHub Workshop - Using GitHub For Remote Git Repository Hosting
- Task 1 - Use GitHub as a Git Remote
- Step 1-1 - Open GitHub in a browser
- Step 1-2 - Create a new repo in the browser
- Step 1-3 - View the new repo in the browser
- Step 1-4 - Open an SSH connection to the lab machine
- Step 1-5 - Confirm
git remoteresults are empty - Step 1-6 - Create the
git remoteentries - Step 1-7 - Push the local working directory to the remote repo
- Step 1-8 - Confirm that local and remote are in sync
- Task 2 - Combine Git Local and Remote Actions
- Step 2-1 - Create a
README.mdfile - Step 2-2 - Add and commit
README.md - Step 2-3 - Push the updates
- Step 2-4 - Confirm that
README.mdis remote as well as local - Step 2-5 - Note that the
outputfolder is not in the remote repo - Step 2-6 - Delete the local repo
- Step 2-7 - Clone the remote repo
- Step 2-8 - Note the git history
- Step 2-1 - Create a
- Task 3 - Develop with Git Branches and GitHub Pull Requests
- Step 3-1 - Create a new git branch to add new Dublin routers
- Step 3-2 - Add new Dublin routers to the
inventoryfile - Step 3-3 - Add and commit the changed file
- Step 3-4 - Push the new branch to the remote
- Step 3-5 - Note the changes on the GitHub web page
- Step 3-6 - Edit the git pull request
- Step 3-7 - Note the created git pull request

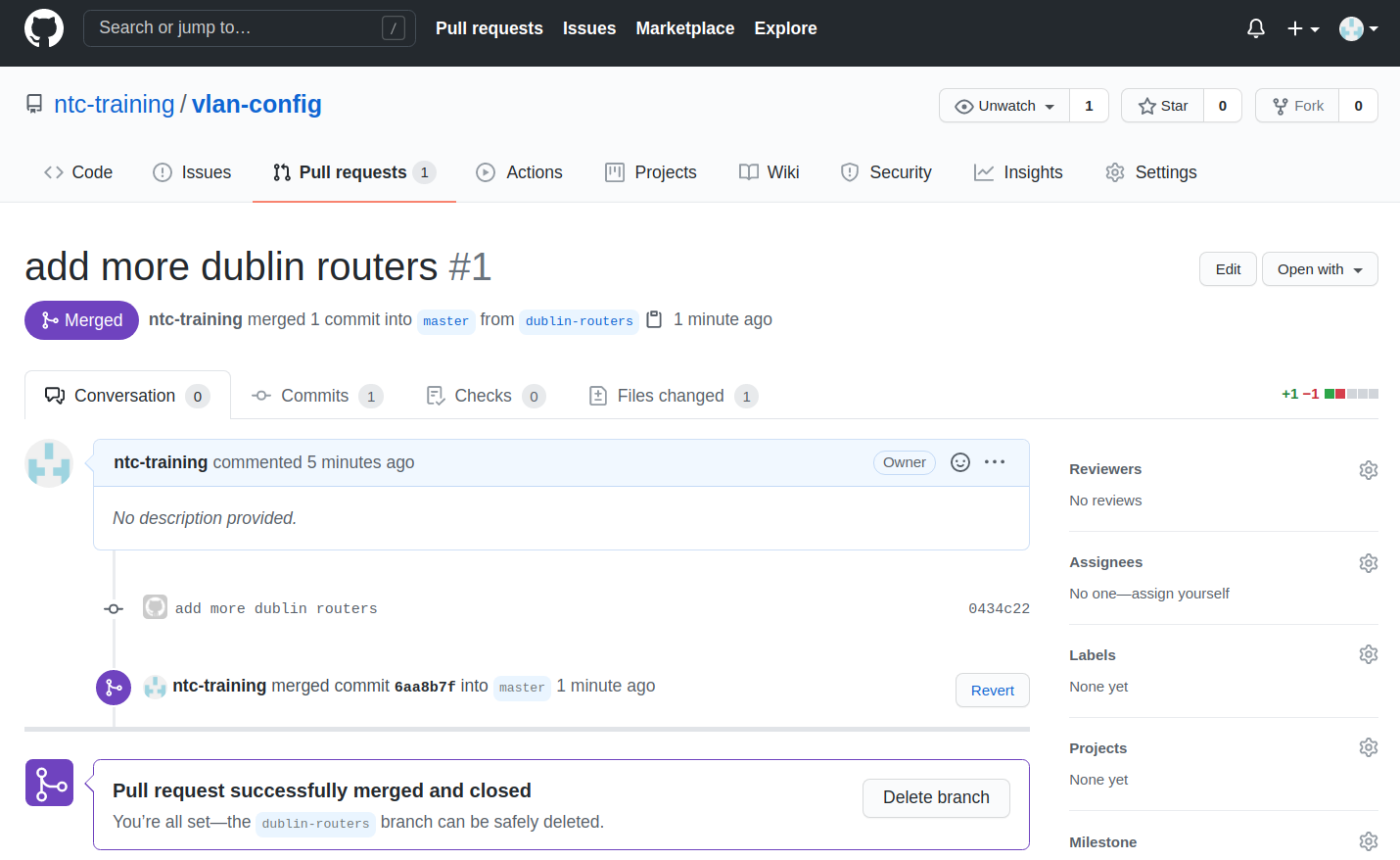

- Step 3-8 - Merge the git pull request
- Step 3-9 - Confirm that the remote file has been updated
- Step 3-10 - Pull the updated main branch down locally
- Step 3-11 - Delete the local branch
Task 1 - Use GitHub as a Git Remote¶
This task creates a repository on GitHub and starts using it as a remote for the vlan-config repo you worked on in the previous lab.
Step 1-1 - Open GitHub in a browser¶

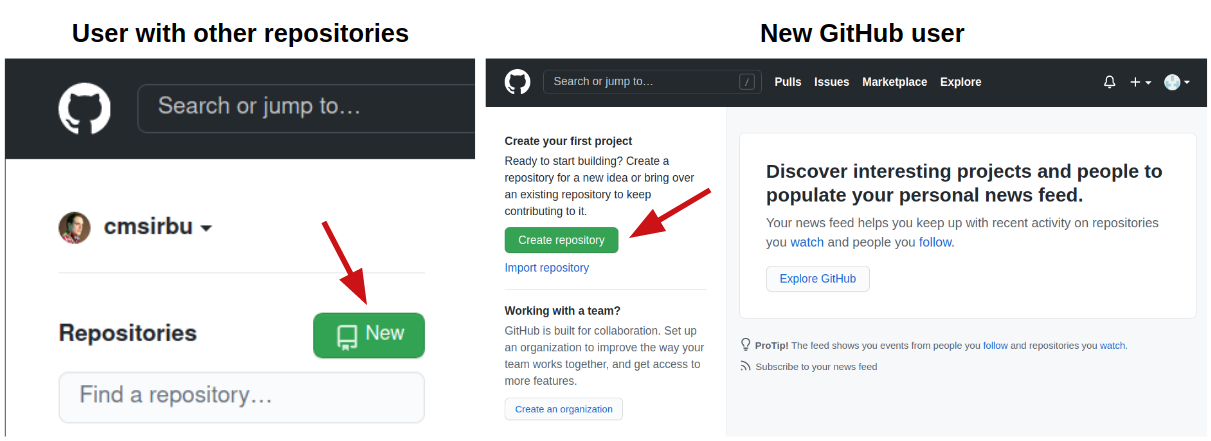

Open your web browser and login to GitHub. On the homepage, you should be able to find a button that creates a new repository. If your account is completely new (has no repositories), the page will look a bit different than if you had already done some work on GitHub. The screenshots included below show both variants.

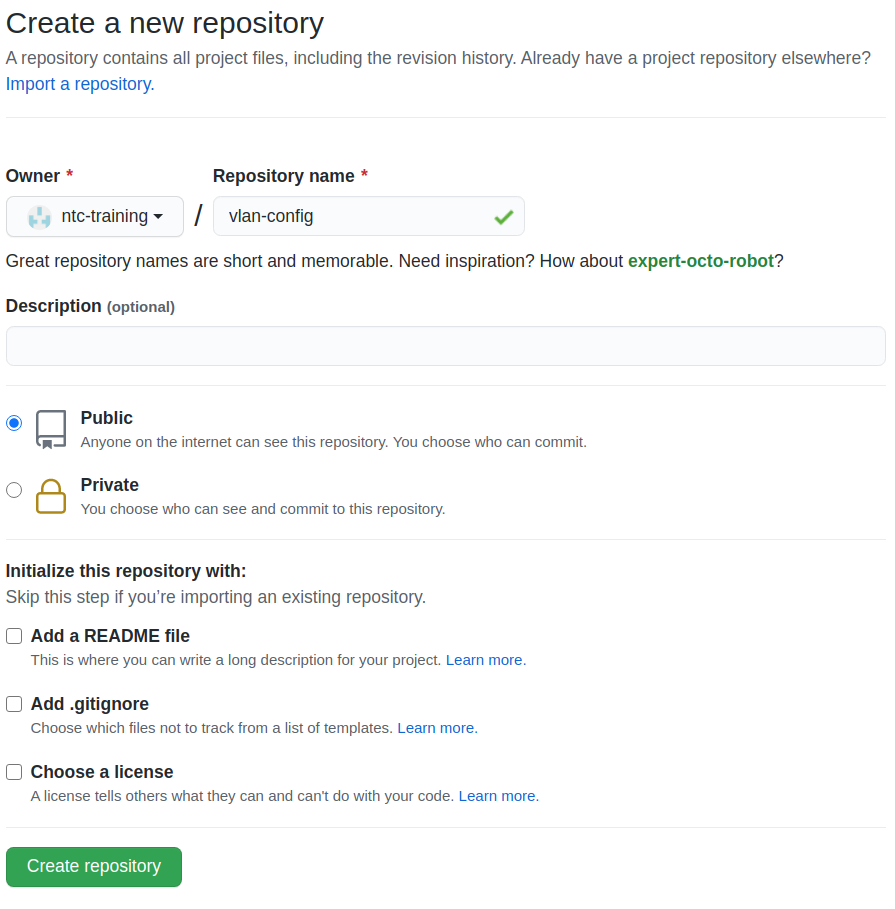

Step 1-2 - Create a new repo in the browser¶
Create a new repository on GitHub. Call it vlan-config, but keep in mind it does NOT have to match with your local folder name. It's good to have the same names for consistency and findability though.

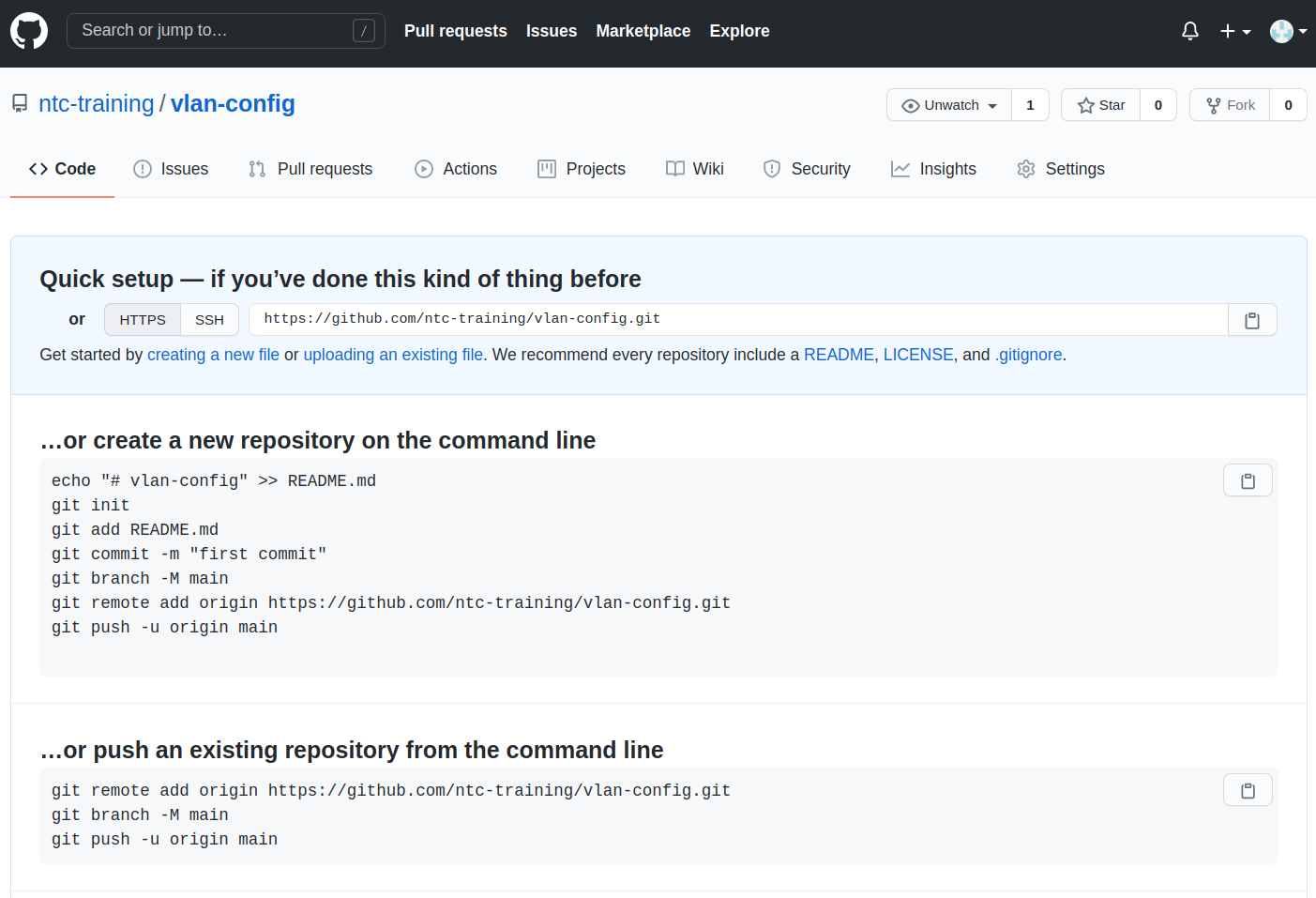

Step 1-3 - View the new repo in the browser¶
The repository page should look like this. It is completely empty by choice as you will be pushing from your already populated local repository.
Note: GitHub even helpfully provides the commands you would need to execute to do just this, but you will go through this step by step.
Step 1-4 - Open an SSH connection to the lab machine¶
Open an SSH session to the lab machine where your local repository from the previous lab is located.
Change into the /home/ntc/labs/vlan-config folder and confirm the structure looks like the output below.
ntc-training ~ $ cd /home/ntc/labs/vlan-config
ntc-training ~/labs/vlan-config (main) $ tree
.
├── group_vars
│ └── all.yml
├── inventory
├── output
│ ├── dub-router-01_vlans.cfg
│ ├── dub-router-02_vlans.cfg
│ ├── dub-router-03_vlans.cfg
│ ├── dub-router-04_vlans.cfg
│ ├── dub-router-05_vlans.cfg
│ ├── nyc-router-01_vlans.cfg
│ ├── nyc-router-02_vlans.cfg
│ ├── nyc-router-03_vlans.cfg
│ ├── nyc-router-04_vlans.cfg
│ └── nyc-router-05_vlans.cfg
├── pb_vlans.yml
└── templates
└── vlans.j2
3 directories, 14 files
Step 1-5 - Confirm git remote results are empty¶
Type git remote to confirm there is no remote defined yet for the repository. There is no output.
Step 1-6 - Create the git remote entries¶

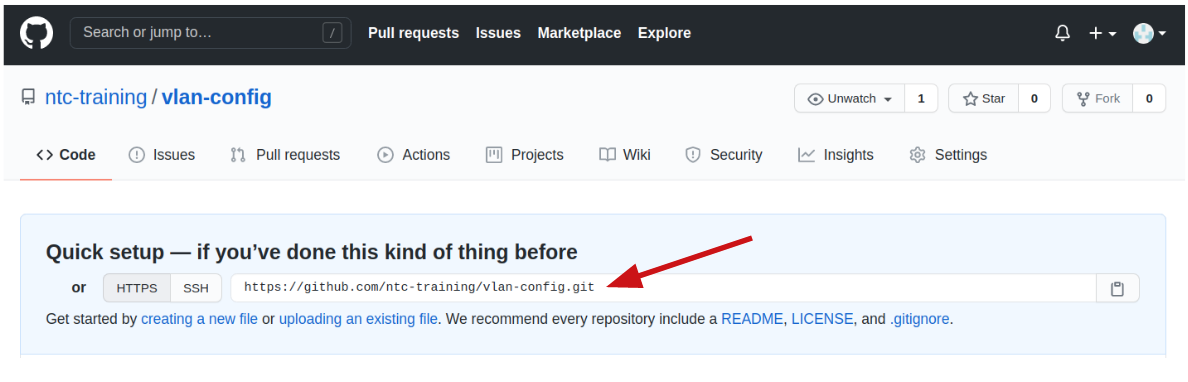

Copy the repository URL from the GitHub page.
After, add your newly created GitHub repository as the origin remote.
!!! Remember to replace the URL with your own repository URL. What should change is that your own GitHub username replaces ntc-training. !!!
ntc-training ~/labs/vlan-config (main) $ git remote add origin https://github.com/ntc-training/vlan-config.git
ntc-training ~/labs/vlan-config (main) $ git remote -v
origin https://github.com/ntc-training/vlan-config.git (fetch)
origin https://github.com/ntc-training/vlan-config.git (push)
Step 1-7 - Push the local working directory to the remote repo¶
Nothing has happened yet. You may refresh your GitHub repository page if you wish, it should still be empty.
Push your local repository to GitHub. Since this is a write operation, GitHub will require you to log in - this is done transparently by the git command line client.
ntc-training ~/labs/vlan-config (main) $ git push origin main
Username for 'https://github.com': ntc-training
Password for 'https://ntc-training@github.com':
Enumerating objects: 18, done.
Counting objects: 100% (18/18), done.
Delta compression using up to 2 threads
Compressing objects: 100% (12/12), done.
Writing objects: 100% (18/18), 1.63 KiB | 832.00 KiB/s, done.
Total 18 (delta 3), reused 0 (delta 0)
remote: Resolving deltas: 100% (3/3), done.
To https://github.com/ntc-training/vlan-config.git
* [new branch] main -> main
Note: you may use either HTTPS or SSH as transport for git and both require authentication. It is fairly common to set up SSH authentication using public keys to make it less cumbersome than having to write the username and password every time.

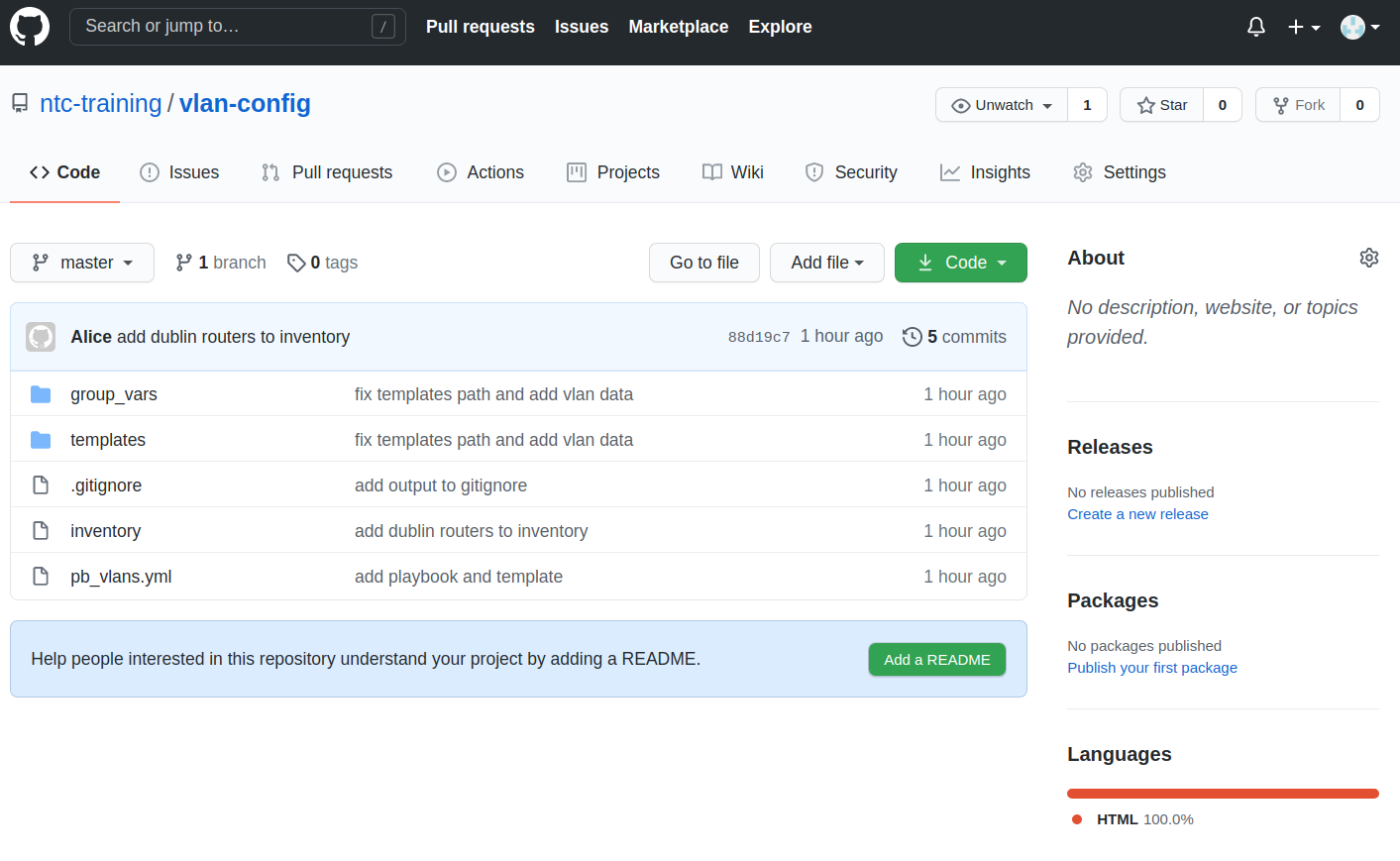

Step 1-8 - Confirm that local and remote are in sync¶
Refresh your GitHub webpage for the repository - you will notice that the two are now in sync.
Note: every time you work on your repository you will have to sync (pushing, pulling, merging) the two, nothing happens automatically!
Task 2 - Combine Git Local and Remote Actions¶
As you are set up now with a GitHub remote, it's time to add another file and prepare for other collaborative workflows.
Step 2-1 - Create a README.md file¶
On your lab machine repository, create a new file called README.md in the root of the vlan-config repository.
ntc-training ~/labs/vlan-config (main %) $ cat README.md
# Vlan Configuration Playbook
An Ansible playbook that generates configuration files from VLAN data.
ntc-training ~/labs/vlan-config (main %) $
Step 2-2 - Add and commit README.md¶
Stage and commit the file.
ntc-training ~/labs/vlan-config (main %) $ git add README.md
ntc-training ~/labs/vlan-config (main +) $ git status
On branch main
Changes to be committed:
(use "git restore --staged <file>..." to unstage)
new file: README.md
ntc-training ~/labs/vlan-config (main +) $ git commit -m "Add README"
[main fee2f6d] Add README
1 file changed, 4 insertions(+)
create mode 100644 README.md
Step 2-3 - Push the updates¶
At this point, the new file is part of the repository, but only locally. Your local repo is now out of sync with the GitHub repo. To finalize, push the local changes upstream.
ntc-training ~/labs/vlan-config (main) $ git push origin main
Username for 'https://github.com': ntc-training
Password for 'https://ntc-training@github.com':
Enumerating objects: 4, done.
Counting objects: 100% (4/4), done.
Delta compression using up to 2 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 355 bytes | 355.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0)
remote: Resolving deltas: 100% (1/1), completed with 1 local object.
To https://github.com/ntc-training/vlan-config.git
88d19c7..fee2f6d main -> main
Step 2-4 - Confirm that README.md is remote as well as local¶

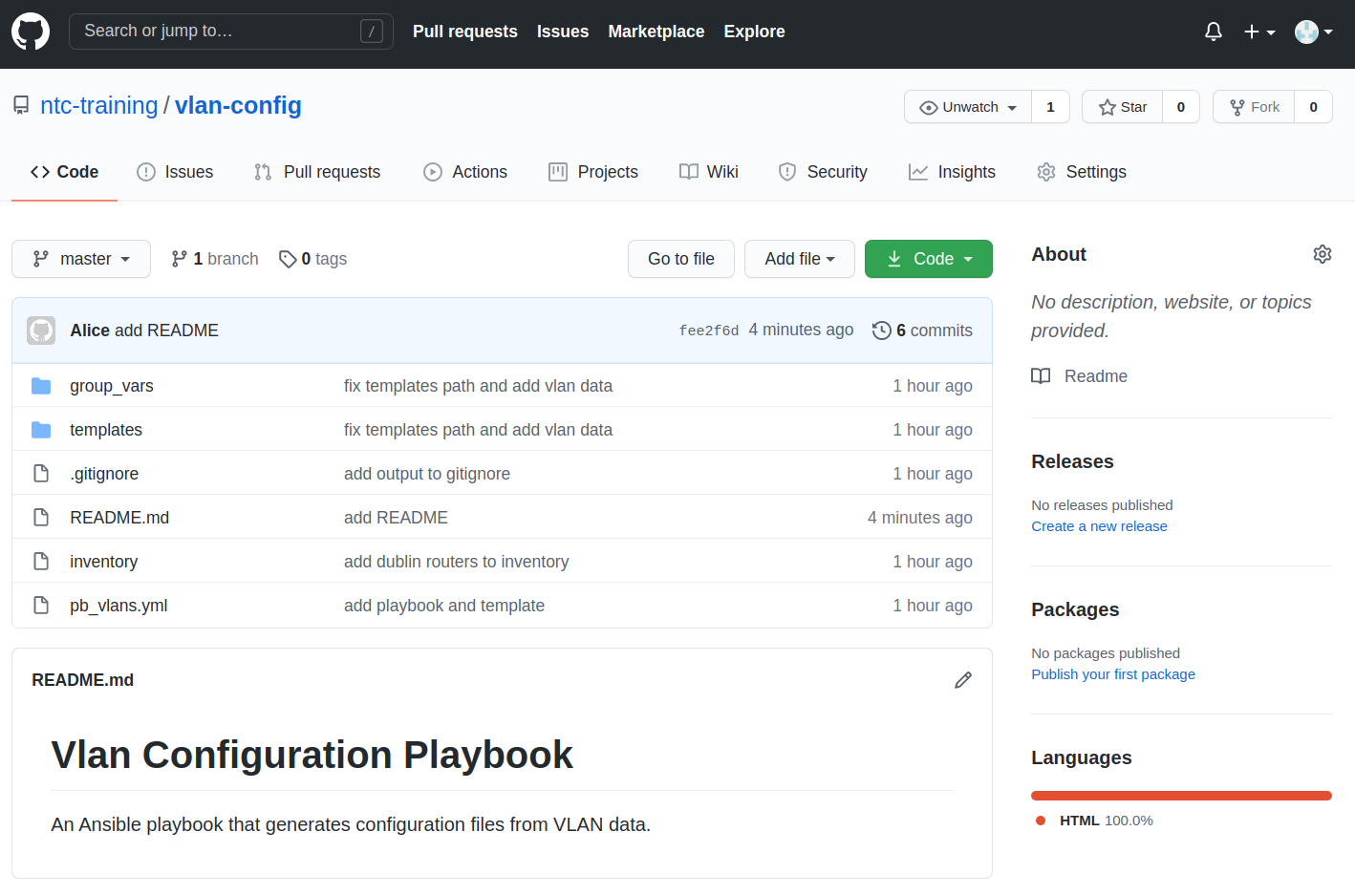

Refresh your GitHub webpage - you will notice that the README file is now rendered on the repository homepage.
Step 2-5 - Note that the output folder is not in the remote repo¶
You might remember the output folder - which is ignored by git - from the previous lab. It contains the generated configuration files and we have decided it is not going to be stored in the repository. Compare the GitHub repo with the local working directories.
ntc-training ~/labs/vlan-config (main) $ tree
.
├── README.md
├── group_vars
│ └── all.yml
├── inventory
├── output
│ ├── dub-router-01_vlans.cfg
│ ├── dub-router-02_vlans.cfg
│ ├── dub-router-03_vlans.cfg
│ ├── dub-router-04_vlans.cfg
│ ├── dub-router-05_vlans.cfg
│ ├── nyc-router-01_vlans.cfg
│ ├── nyc-router-02_vlans.cfg
│ ├── nyc-router-03_vlans.cfg
│ ├── nyc-router-04_vlans.cfg
│ └── nyc-router-05_vlans.cfg
├── pb_vlans.yml
└── templates
└── vlans.j2
3 directories, 15 files
Step 2-6 - Delete the local repo¶
Since the GitHub repository is now in sync with the local one, you can safely delete your local copy. Let's pretend we're finished developing for now.
ntc-training ~/labs/vlan-config (main) $ cd ..
ntc-training ~/labs $ rm -rf vlan-config/
ntc-training ~/labs $ ls
ntc-training ~/labs $
Step 2-7 - Clone the remote repo¶
Now pretend a few days have passed and you're on another computer. You want to continue development on the vlan-config repository, so you decide to fetch a fresh copy from GitHub.

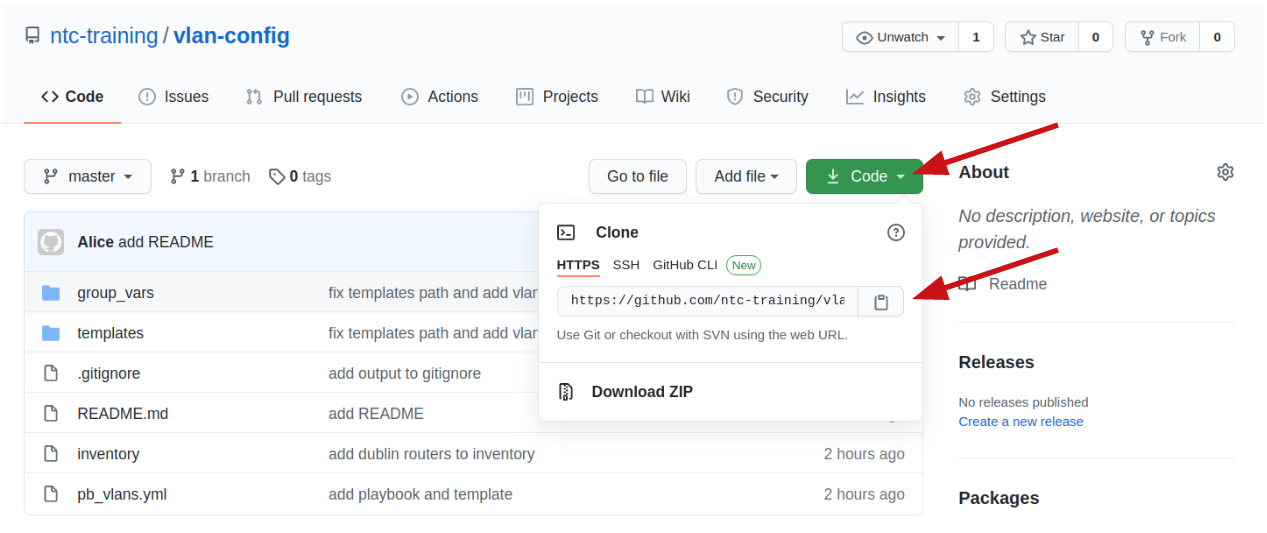

If you don't remember the URL, you can copy it from the GitHub repository homepage.
Use the URL to clone the repository locally.
ntc-training ~/labs $ git clone https://github.com/ntc-training/vlan-config.git
Cloning into 'vlan-config'...
remote: Enumerating objects: 21, done.
remote: Counting objects: 100% (21/21), done.
remote: Compressing objects: 100% (11/11), done.
remote: Total 21 (delta 4), reused 21 (delta 4), pack-reused 0
Unpacking objects: 100% (21/21), 1.90 KiB | 278.00 KiB/s, done.
ntc-training ~/labs $ tree
.
└── vlan-config
├── README.md
├── group_vars
│ └── all.yml
├── inventory
├── pb_vlans.yml
└── templates
└── vlans.j2
3 directories, 5 files
ntc-training ~/labs $
Step 2-8 - Note the git history¶
Take a closer look at the repository. All the files that are tracked by git are there, together with their full history.
ntc-training ~/labs/vlan-config (main=) $ git log
commit fee2f6d71edb68409d7e9f39a5944adb5dbf109b (HEAD -> main, origin/main, origin/HEAD)
Author: Alice <alice@example.com>
Date: Mon Nov 30 14:01:38 2020 +0000
Add README
commit 88d19c7541c840388e89bda4c2f8f53e7264f34b
Author: Alice <alice@example.com>
Date: Mon Nov 30 12:49:05 2020 +0000
Add dublin routers to inventory
commit ee8d02bdffa1ef001180de3e1f35057f5778619c
Author: Alice <alice@example.com>
Date: Mon Nov 30 12:43:52 2020 +0000
Add output to gitignore
commit 90a03ce098f266905d6480e815f8906f1be9b82c
Author: Alice <alice@example.com>
Date: Mon Nov 30 12:41:31 2020 +0000
Fix templates path and add vlan data
commit d89f061822c02865c05642775dbb78e1dc656e2d
Author: Alice <alice@example.com>
Date: Mon Nov 30 12:38:29 2020 +0000
Add playbook and template
commit b86984dee53c11b14a45d438316bf6ace85a9a94
Author: Alice <alice@example.com>
Date: Mon Nov 30 12:32:30 2020 +0000
Add inventory file
ntc-training ~/labs/vlan-config (main=) $
Task 3 - Develop with Git Branches and GitHub Pull Requests¶
As you are the maintainer of this repository (i.e. you have write access to it, you can make changes) you can always simply push changes to the main branch directly. But in a collaborative environment, it's good practice to develop on a separate branch (that's a snapshot in time of the repository) and then merge it back into the main (or main) branch.
You will now make a modification to the inventory and submit it through the GitHub flow - i.e. submit a Pull Request.
Step 3-1 - Create a new git branch to add new Dublin routers¶
Dublin now has 5 new routers, so you need to go into the inventory file and expand the list.
First, create a new branch named dublin-routers. Then, switch to it - this new branch is created from main and its files are identical.
ntc-training ~/labs/vlan-config (main=) $ git branch dublin-routers
ntc-training ~/labs/vlan-config (main=) $ git branch
dublin-routers
* main
ntc-training ~/labs/vlan-config (main=) $ git checkout dublin-routers
Switched to branch 'dublin-routers'
ntc-training ~/labs/vlan-config (dublin-routers) $ tree
.
├── README.md
├── group_vars
│ └── all.yml
├── inventory
├── pb_vlans.yml
└── templates
└── vlans.j2
2 directories, 5 files
Note: the prompt has changed - it's showing the current active branch. Having such a prompt is extremely useful. You could also use a shortcut when creating a new branch -
git checkout -b dublin-routerswhich combines two commands (the creation and switch) in one.
Step 3-2 - Add new Dublin routers to the inventory file¶
Edit the inventory file as shown below.
ntc-training ~/labs/vlan-config (dublin-routers *) $ cat inventory
nyc-router-[01:05]
dub-router-[01:10]
ntc-training ~/labs/vlan-config (dublin-routers *) $ git diff
diff --git a/inventory b/inventory
index 3e18a93..c28c34a 100644
--- a/inventory
+++ b/inventory
@@ -1,2 +1,2 @@
nyc-router-[01:05]
-dub-router-[01:05]
+dub-router-[01:10]
ntc-training ~/labs/vlan-config (dublin-routers *) $
Step 3-3 - Add and commit the changed file¶
Stage and commit the changes.
ntc-training ~/labs/vlan-config (dublin-routers *) $ git add inventory
ntc-training ~/labs/vlan-config (dublin-routers +) $ git commit -m "Add more dublin routers"
[dublin-routers 0434c22] Add more dublin routers
1 file changed, 1 insertion(+), 1 deletion(-)
ntc-training ~/labs/vlan-config (dublin-routers) $
ntc-training ~/labs/vlan-config (dublin-routers) $
ntc-training ~/labs/vlan-config (dublin-routers) $ git log
commit 0434c22e24c008bdaddb00e9e212517a9022d3c6 (HEAD -> dublin-routers)
Author: Alice <alice@example.com>
Date: Mon Nov 30 14:53:33 2020 +0000
Add more dublin routers
commit fee2f6d71edb68409d7e9f39a5944adb5dbf109b (origin/main, origin/HEAD, main)
Author: Alice <alice@example.com>
Date: Mon Nov 30 14:01:38 2020 +0000
Add README
<OUTPUT SNIPPED>
Check the git log - while the dublin-routers branch now has a new commit, you can see that the main branch is at its original state (one commit behind).
Step 3-4 - Push the new branch to the remote¶
It's time now to push the changes to GitHub and prepare to merge this change into the main branch. This whole process makes reviewing easier and allows someone else (like a colleague) to review your changes before allowing them into the main branch.
ntc-training ~/labs/vlan-config (dublin-routers) $ git push --set-upstream origin dublin-routers
Username for 'https://github.com': ntc-training
Password for 'https://ntc-training@github.com':
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 2 threads
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 285 bytes | 285.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0)
remote: Resolving deltas: 100% (1/1), completed with 1 local object.
remote:
remote: Create a pull request for 'dublin-routers' on GitHub by visiting:
remote: https://github.com/ntc-training/vlan-config/pull/new/dublin-routers
remote:
To https://github.com/ntc-training/vlan-config.git
* [new branch] dublin-routers -> dublin-routers
Branch 'dublin-routers' set up to track remote branch 'dublin-routers' from 'origin'.
Note: since the
dublin-routersbranch is local only, you need to tell git to create a remote branch as well (onoriginwhich in this case is GitHub).
Step 3-5 - Note the changes on the GitHub web page¶

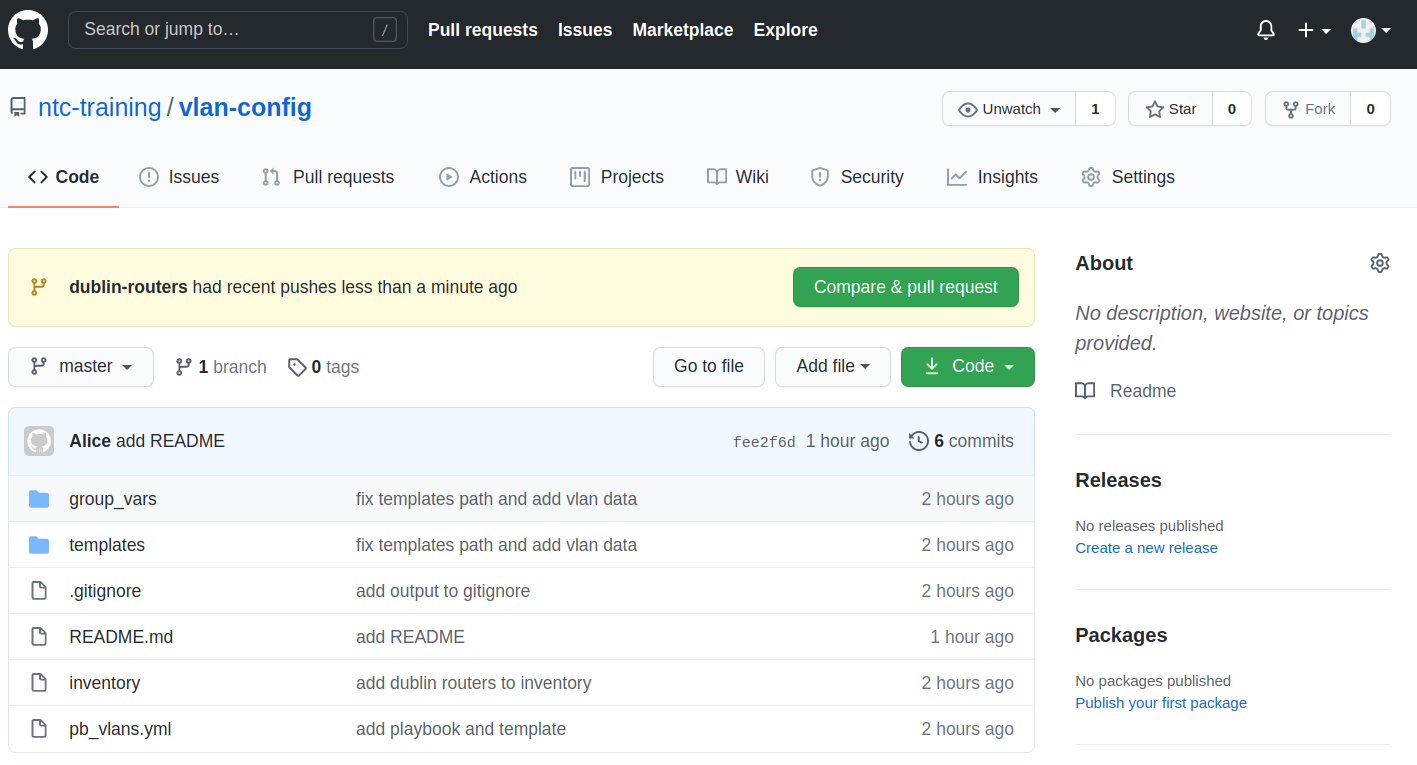

Visit the GitHub repository homepage (you may need to refresh). GitHub has noticed new changes have been pushed to a separate branch and is offering to create a Pull Request for merging the changes into the main branch.
Click the Compare & pull request button.
Step 3-6 - Edit the git pull request¶

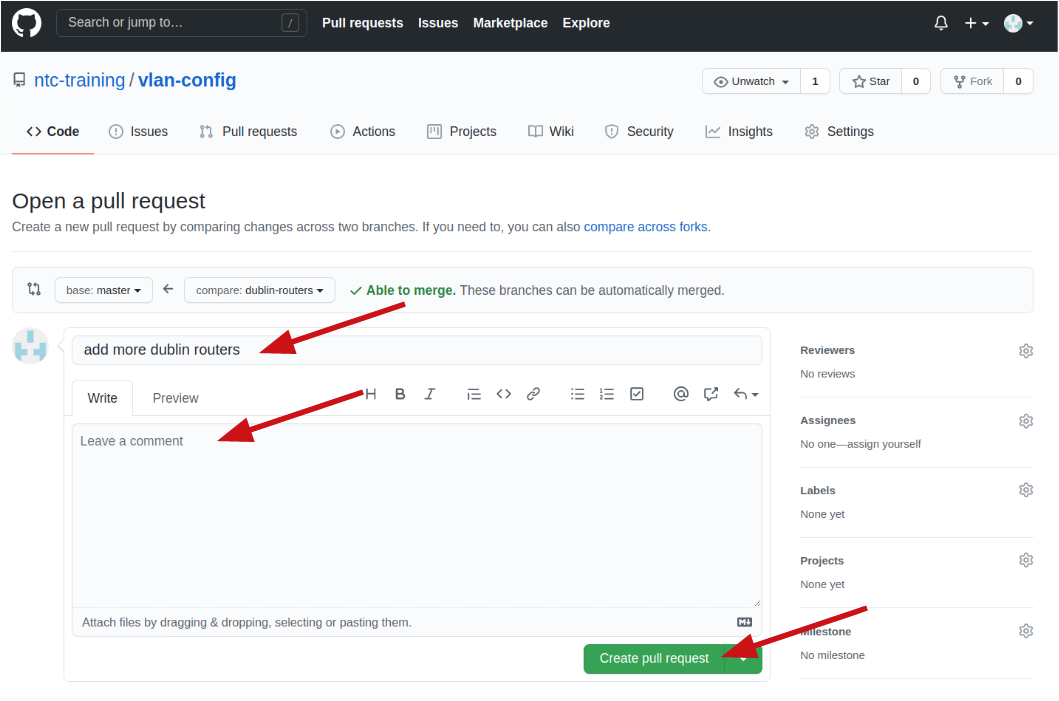

In the new page that has just opened, you can add comments and change the title of the PR (Pull Request), then finally submit it by clicking the green "Create pull request" button.
Step 3-7 - Note the created git pull request¶
The PR is now created and you can ask someone else to review it by giving them the link - it will looks something like https://github.com/ntc-training/vlan-config/pull/1.

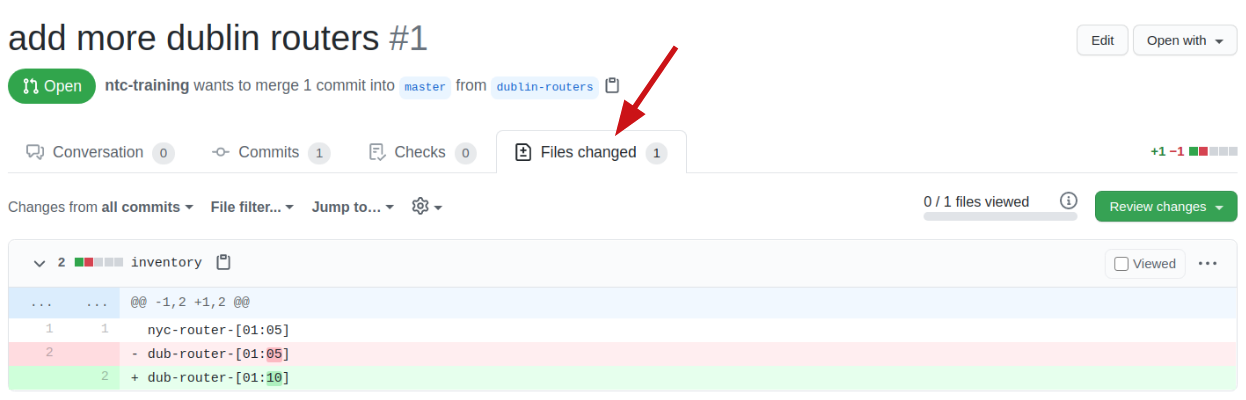

Additionally, whoever is reviewing it can review the files that are changed by clicking on the Files changed tab.
Step 3-8 - Merge the git pull request¶
Once you're happy with the PR, you may choose to merge it. The button is at the bottom of the main PR page (the Conversation tab if you navigated somewhere else) and has the text Merge pull request.
Click it now, then Confirm merge.
It'll take a couple seconds and when it's done, GitHub will offer to delete the dublin-routers branch. If the branch was created for a single one-shot change, it's good to keep a clean house and delete it.
Note: if you choose to delete the branch, it will only be deleted in the GitHub copy of the repository. Your local one will still have it until you choose to delete the local branch.
Step 3-9 - Confirm that the remote file has been updated¶
View the inventory file by opening it in the GitHub web interface and confirm the contents have been updated as per the change (the second line should read dub-router-[01:10]).
Step 3-10 - Pull the updated main branch down locally¶
Back on your lab machine, it's time to synchronize and pull the updated main branch (first switch to it!).
ntc-training ~/labs/vlan-config (dublin-routers=) $ git branch
* dublin-routers
main
ntc-training ~/labs/vlan-config (dublin-routers=) $ git checkout main
Switched to branch 'main'
Your branch is up to date with 'origin/main'.
ntc-training ~/labs/vlan-config (main=) $ git pull origin main
remote: Enumerating objects: 1, done.
remote: Counting objects: 100% (1/1), done.
remote: Total 1 (delta 0), reused 0 (delta 0), pack-reused 0
Unpacking objects: 100% (1/1), 636 bytes | 636.00 KiB/s, done.
From https://github.com/ntc-training/vlan-config
* branch main -> FETCH_HEAD
fee2f6d..6aa8b7f main -> origin/main
Updating fee2f6d..6aa8b7f
Fast-forward
inventory | 2 +-
1 file changed, 1 insertion(+), 1 deletion(-)
ntc-training ~/labs/vlan-config (main=) $ cat inventory
nyc-router-[01:05]
dub-router-[01:10]
Note: since your repository on GitHub is public, you don't need to authenticate for read operations - anyone can see it anonymously!
Step 3-11 - Delete the local branch¶
You can also delete the local dublin-routers branch since you no longer need it.
